In the field of engineering drilling, Down-the-hole Drill Pipe and Top Hammer Drill Pipe are two common types of drilling tools, and there are significant differences between them in terms of working principle, structural design and application scenarios.
I.Working principle and energy transfer

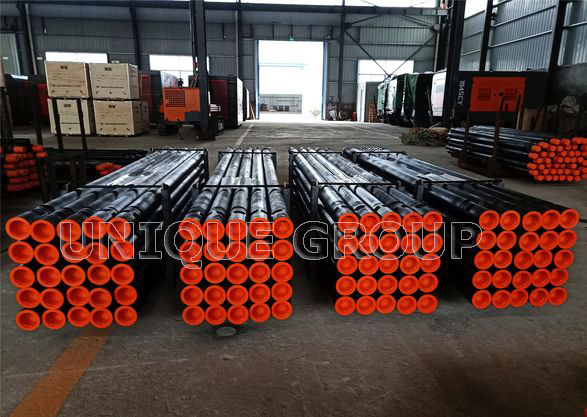

1.Down-the-hole drilling rod: the impactor dives into the bottom of the hole
The core feature of down-the-hole drilling rod is that the impactor (down-the-hole hammer) is located at the front end of the drilling rod, and it dives directly into the inside of the hole. During operation, compressed air drives a piston in the impactor to impact the drill bit at high frequencies, breaking up the rock. As the impact energy does not need to be transmitted through the long drill pipe, the energy loss is small, which is especially suitable for deep hole and hard rock work.
Advantages: high energy utilisation, stable drilling efficiency; reduced fatigue damage to the drill pipe due to shock waves.
2.Top Hammer Drill Pipe: Impact force is transmitted from the top
The impact force of the top hammer drill pipe is generated by the rock drill or hydraulic hammer at the top of the rig, and is transmitted through the drill pipe directly to the drill bit at the bottom of the hole. This design is similar to the ‘top-down’ method and is suitable for small to medium sized holes and shallow holes.
Advantages: Smaller hole sizes (typically ≤127mm), suitable for confined spaces; simple construction, low maintenance costs.
II.Structural Design and Material Differences

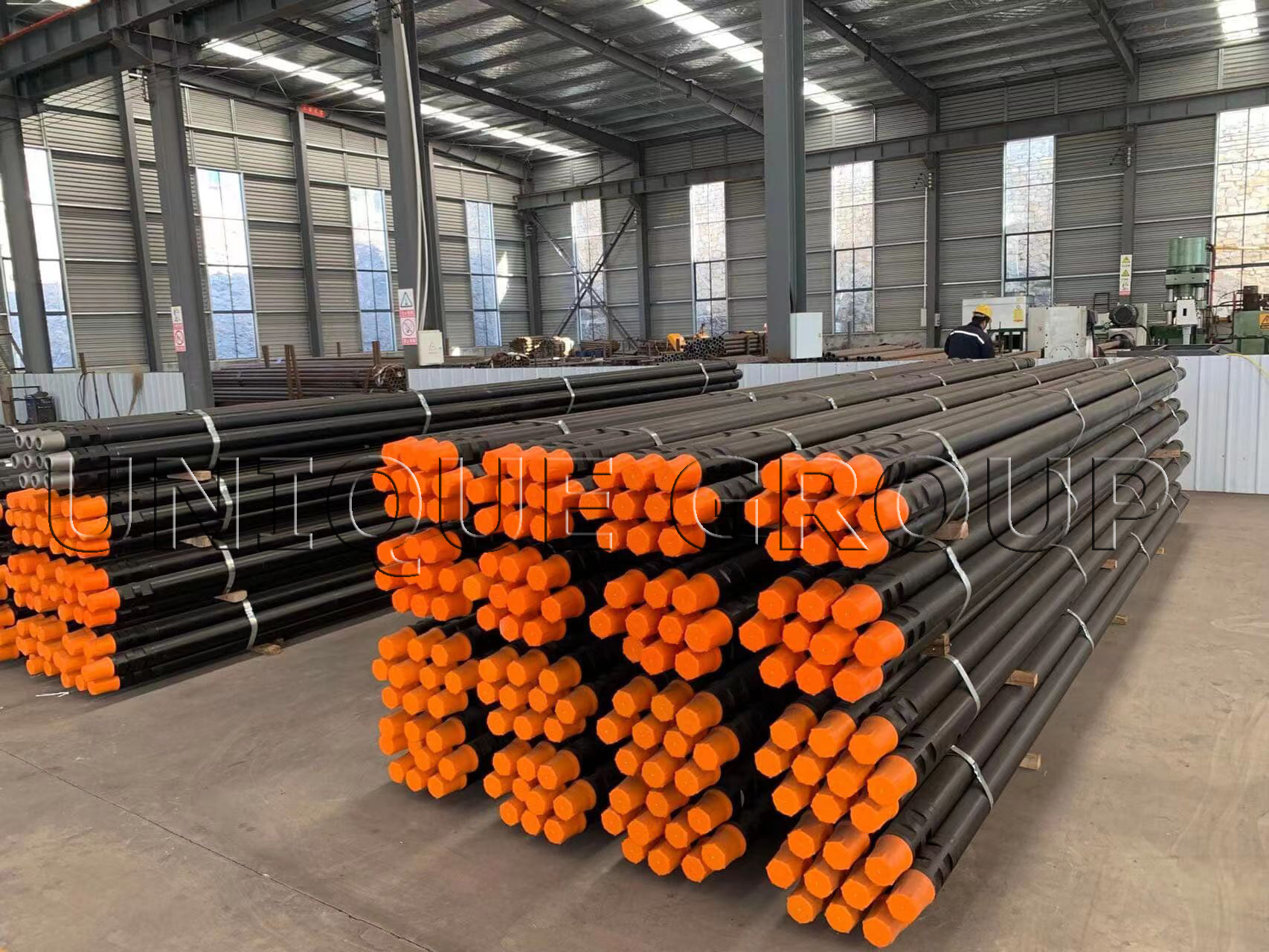

1.Down-the-hole Drill Pipe: Modularity and High-strength Welding

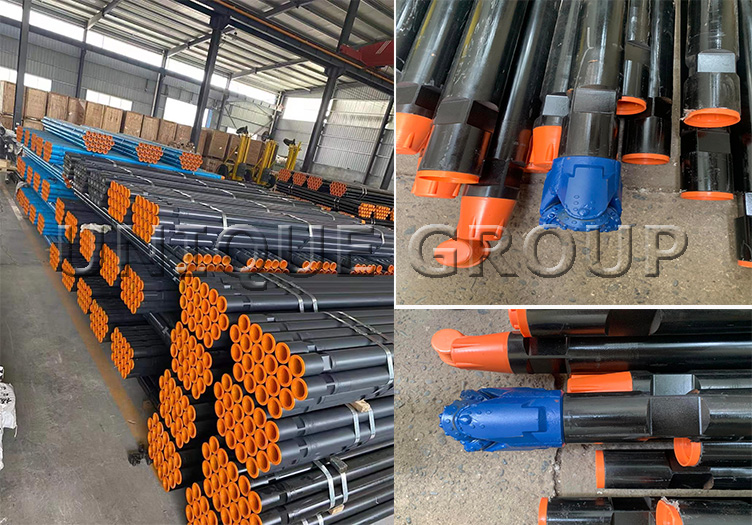

Down-the-hole drill pipe consists of rod barrel, male and female joints, which are connected with friction welding technology to ensure that there is no gap at the joints. Most of the rods are made of DZ50 and R780 geological steel pipes, and the joints are made of 42CrMo alloy steel, with torsional strength increased by more than 30% after heat treatment.
2.Top Hammer Drill Pipe: Lightweight and Wear-resistant Design
Top Hammer Drill Pipe focuses on lightweight and wear-resistant, and the pipe body is made of 40Cr or 45# steel, with nitriding treatment on the surface to prolong the service life. The joint design emphasises torsion resistance, and some models are equipped with a spanner slot for quick disassembly.
III.Comparison of Application Scenarios
1.Applicable Fields of Down Hole Drill Pipe
Mining Blasting: such as deep hole blasting in metal mines and coal mines, the depth of a single hole can reach 30m; Foundation Engineering: Anchor drilling in bridges and tunnels, the diameter of the drilling hole is 130-250mm; Geothermal Exploitation: Dry drilling technology reduces the mud contamination, which is in line with the requirements of environmental protection.
2.Applicable fields of top hammer drill rods
Tunnel support: slope anchor construction, hole diameter ≤ 127mm, depth ≤ 20m; building reinforcement: concrete drilling, crushing operations, with the use of hydraulic rock drills; emergency rescue: rapid drilling in narrow spaces, such as the opening of life channels after the earthquake.
IV.Performance Parameters and Economic Analysis
1.Drilling Efficiency Comparison
Down-the-hole drilling rods: in F=8-16 grade rock, the drilling speed can reach 1m/min, which is 8-10 times higher than that of the wind-operated equipment;
Top Hammer drilling rods: the efficiency is higher in soft rock, but the drilling speed of hard rock decreases significantly.
2.Difference in maintenance cost
Down-the-hole drilling rods: need to check the sealing of the impactor regularly, and the maintenance cost of the dust removal system is higher; top hammer drilling rods: the wear is concentrated in the drill bit, and the frequency of replacement is low, but the bending of the rods needs to be corrected.
3.Future Development Trends
Intelligent Upgrade: Down-the-hole drilling rods will be integrated with sensors to monitor the impact force and propulsion pressure in real time, so as to optimise the drilling parameters;
Top hammer drilling rods will achieve automatic pressure regulation through the hydraulic control system, so as to reduce the need for manual intervention.
Material innovation:
down-the-hole drill pipes may use carbon fibre composite materials to reduce weight; top hammer drill pipe joints may introduce self-lubricating coatings to reduce friction loss.
The selection of down-the-hole drill pipes and top hammer drill pipes needs to be considered in the light of engineering requirements, geological conditions and economy. The former has an advantage in the hard rock deep hole field, while the latter is suitable for small and medium-sized projects due to its flexibility. With the advancement of technology, both of them will further expand their application scenarios through intelligence and material innovation, providing better solutions for the improvement of engineering efficiency.
