In the world of water well drilling, the drill rod is far more than just a piece of steel tube. It serves as the critical backbone and vital link between surface drilling rig and the bottom-hole assembly, performing several indispensable functions that make modern deep-well drilling possible.
| Outer Diameter | Wall thickness(mm) | Thread pin/box | Leghth range(m) | |
| inch | mm | |||
| 3 | 76 | 4.5-6.5 | API 2 3/8’’ REG or 2 3/8’’ IF | 1-9.14 |
| 3 1/2 | 89 | 4.5-6.5 | API 2 3/8’’ REG or 2 3/8’’ IF | 1-9.14 |
| 4 | 102 | 6.5-8.5 | API 2 3/8’’ REG or 2 3/8’’ IF | 1-12 |
| 4 1/2 | 114 | 6.5-8.5 | API 2 3/8’’ REG or 2 3/8’’ IF | 1-12 |
| 5 | 127 | 6.5-8.5 | API 2 3/8’’ REG or 2 3/8’’ IF | 1-12 |
| 5 3/4 | 146 | 8.5-10 | API 6 5/8’’ REG | 1-12 |
| 6 5/8 | 168 | 8.5-10 | API 6 5/8’’ REG | 1-12 |
| 7 | 178 | 19-25 | API 4 1/2’’ REG or BECO 4 1/2’’ | 6-12 |
| 7 5/8 | 194 | 19-25 | BECO 4 1/2’’ or BECO 6’’ | 6-12 |
| 8 5/8 | 219 | 19-25 | BECO 4 1/2’’ or API 6 5/8’’ REG | 6-12 |
| 10 3/4 | 273 | 19-25 | API 7 5/8’’ REG or BECO 8’’ | 6-12 |
To produce durable drill pipes capable of drilling under any conditions, drill pipe manufacturers ensure quality and reliability through several steps. Here are some of the steps involved in the manufacturing process of drill pipes:
Suitable Raw Materials: Manufacturers first select high-quality raw materials for the drill pipes. They typically use high-grade alloys such as alloy steel.
Pipe Manufacturing: Different manufacturers use specific techniques to manufacture steel pipes, such as extrusion or seamless pipe manufacturing. This depends on the manufacturer.
Steel Pipe Heat Treatment: Most manufacturers heat-treat the drill pipes. Heat treatment of the drill pipes usually makes them stronger and improves their fatigue resistance.

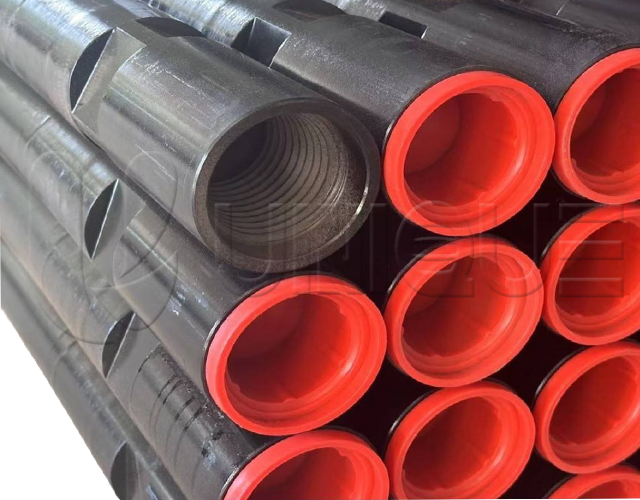

Threading: All drill pipes have threads. There are several different standards for drill pipe threads to ensure compatibility with other components in the drill string.
Thread Inspection: After threading, manufacturers inspect the pipes to ensure the thread specifications are correct.
To guarantee the quality of the pipes, manufacturers conduct specific tests.
As the core force-transmitting component of water well drilling rigs, the connection method of drill rods directly affects drilling efficiency, construction safety, and equipment service life. Drawing on years of experience in drilling rig manufacturing, UNIQUEMAC has summarized the following three types of mainstream drill rod connection methods, covering regular scenarios, heavy-duty operations, and special requirements, to help customers make precise selection decisions:
Selecting the optimal drill rod length is critical for maximizing drilling efficiency, ensuring operational safety, and protecting your UNIQUEMAC water well rig. Focus on 3 core factors + practical tips to make the right choice:
Drilling Depth: Match length to target depth—3-6m rods for shallow wells, 6-9m for medium-depth, and 9-12m for ultra-deep wells . Always add 1-2m spare length to avoid frequent rod additions.
Rig Compatibility: Align with your UNIQUEMAC rig’s power output, load capacity, and rod handling system—oversized/undersized rods may cause equipment overload or instability.
Geological Conditions: Use shorter segments for hard rock or broken strata ; longer rods work for soft soil/sand.
Prioritize standard lengths for easy replacement and maintenance. UNIQUEMAC offers customized lengths with high-strength steel materials, tailored to your project’s specific depth, rig model, and geological needs.
