The main function of the Standard Penetration Test is to evaluate subsurface soil conditions and provide essential geotechnical parameters for foundation design. It helps engineers determine soil stratification, density, strength characteristics, bearing capacity, settlement behavior, and liquefaction potential. As the most widely used in-situ testing method in geotechnical investigation worldwide, SPT delivers reliable field data that directly informs construction decisions, from small residential buildings to large infrastructure projects.
Before any foundation is designed, engineers need reliable information about the ground conditions beneath the site. Soil layers, density, strength, and groundwater conditions directly influence foundation performance and construction risks.
The Standard Penetration Test is a dynamic in-situ testing method performed during borehole drilling to measure soil resistance to penetration. The test involves driving a standardized sampling tool into the ground using a hammer of fixed weight and drop height, then counting the number of blows required to advance the sampler a specified distance. This blow count, known as the SPT N-value, serves as a quantitative index of soil stiffness and strength.
Developed in the early 20th century and standardized by ASTM D1586 and international codes, SPT has become the default soil investigation method across nearly every country. Its global acceptance stems from its simplicity. The equipment required is basic and compatible with most conventional drilling rigs, which means it can be deployed on almost any job site without specialized machinery. Unlike more advanced testing methods that demand trained specialists and complex data processing, SPT produces immediate, interpretable results that field engineers can use right away.

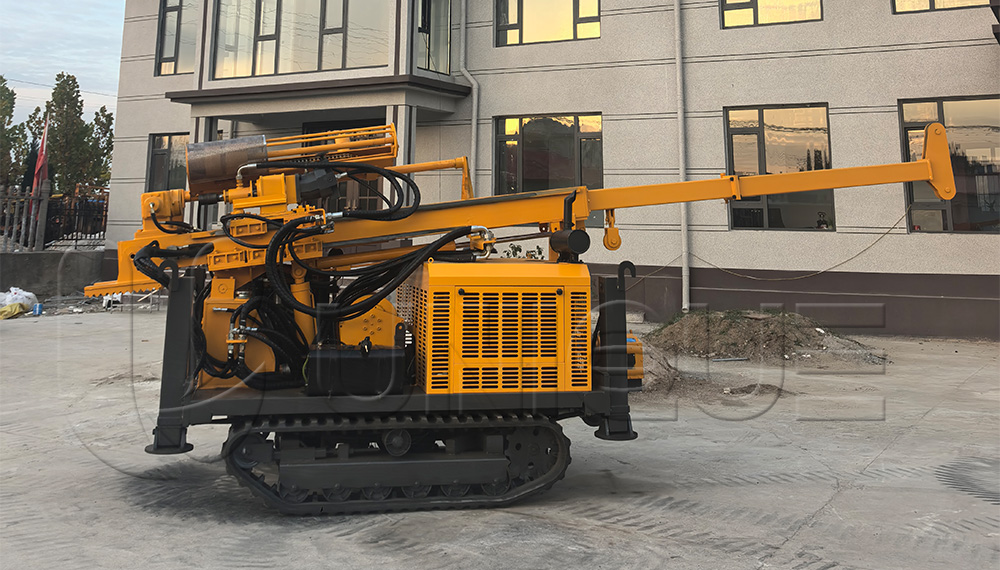

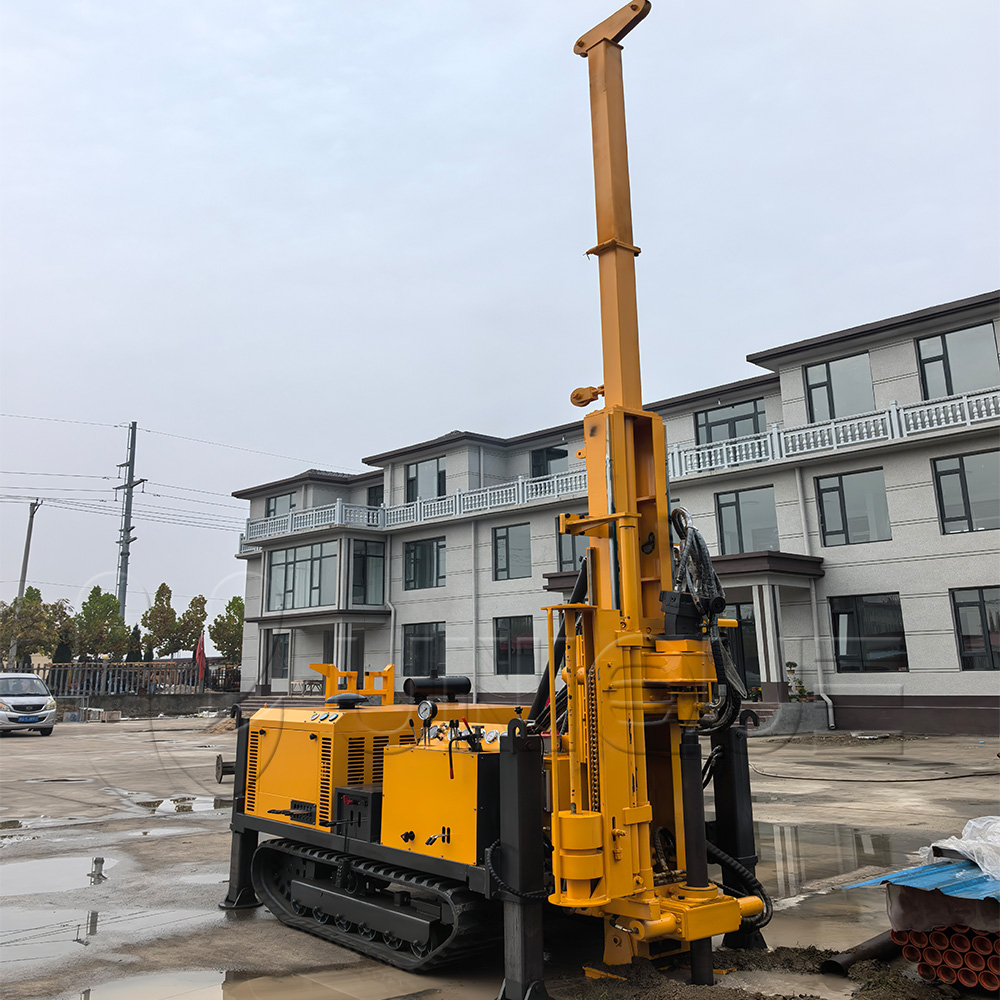

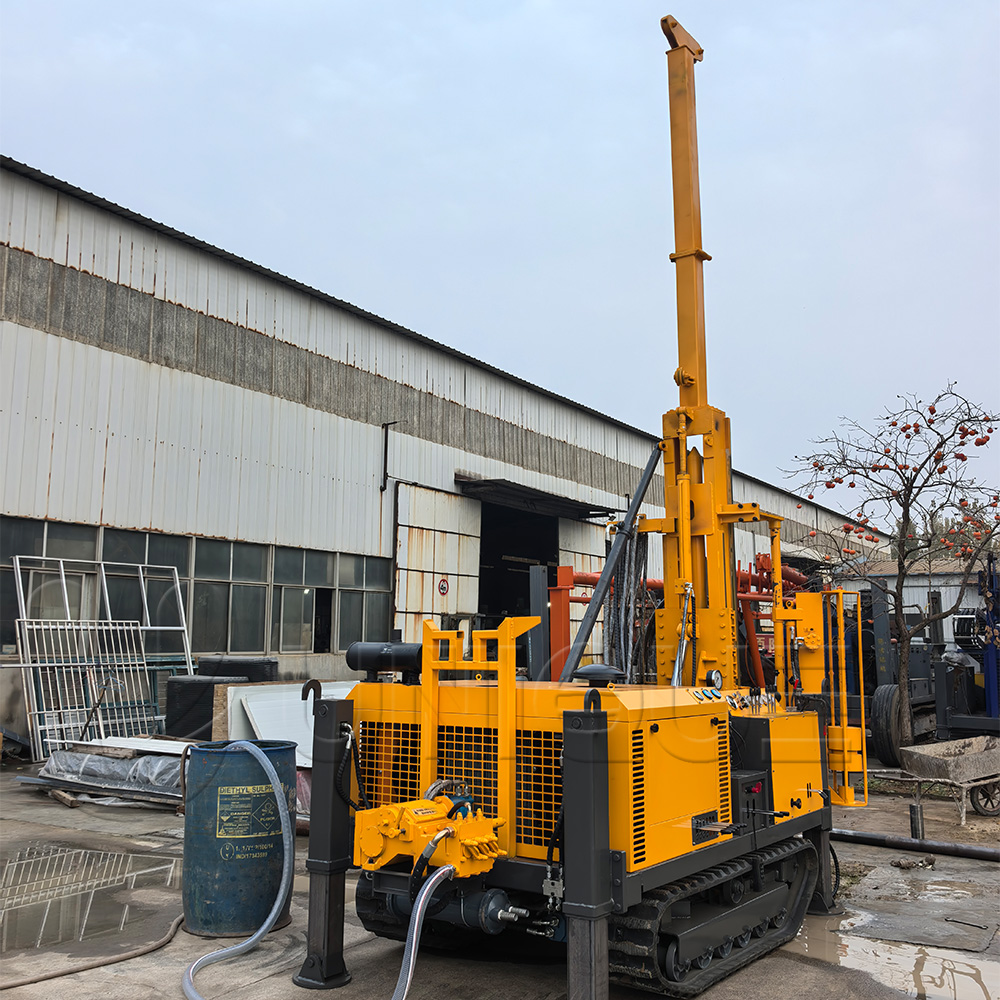

SPT hydraulic coring drilling rig is primarily used in geotechnical site investigations for building foundations, bridge abutments, road embankments, port facilities, and dam construction. It applies to most soil types, including sand, silt, clay, and mixed granular deposits, making it suitable for diverse geological environments. While other testing methods have emerged over time, none have replaced SPT as the first-line investigation tool, largely because of its extensive historical database, established empirical correlations, and ability to retrieve physical soil samples for further laboratory analysis.
The value of SPT extends far beyond generating a single number. Engineers rely on SPT data to answer five critical questions about subsurface conditions, each representing a core function of the test.
Soil Profiling and Soil Layer Identification
The first and most fundamental function of SPT is to map the vertical distribution of soil layers at a site. As drilling progresses and SPT is performed at regular depth intervals, changes in blow count reveal transitions between different soil strata. A sudden increase in blow count may indicate a denser sand layer or stiff clay stratum, while a sharp drop can signal softer deposits or loose fill material.
Soil profiling through SPT allows engineers to identify the thickness and elevation of each geologic layer, from topsoil and fill materials down to native deposits and bedrock. The test distinguishes between sand, clay, silt, gravel, and organic soils, especially when combined with visual inspection of the recovered samples. This layered profile forms the basis of all subsequent geotechnical analysis. Without accurate stratification data, any calculation of bearing capacity or settlement would be fundamentally unreliable.
Borehole investigation using SPT also reveals the depth to groundwater, the presence of boulders or obstructions, and the overall uniformity of subsurface conditions across a project site. This information is essential for planning excavation works, dewatering systems, and construction sequencing.
Measuring Soil Density and Consistency Through SPT N-Value
The SPT N-value represents the number of hammer blows required to drive the split spoon sampler the final 12 inches into the soil. This number directly reflects the relative density of granular soils and the consistency of cohesive soils, making it the most important output of the test.
In granular soils such as sand and gravel, higher N-values indicate denser packing and greater interparticle friction. Engineers classify granular deposits based on blow count ranges. Very loose sands produce N-values below 10, while very dense sands register values above 50. Medium dense sands typically fall between 10 and 30 blows, and dense sands range from 30 to 50. These classifications correspond directly to engineering behavior, with denser soils offering higher bearing capacity and lower settlement potential.
In cohesive soils such as clay and silt, the N-value indicates undrained shear strength and consistency. Soft clays yield low blow counts and deform easily under load, while stiff to hard clays produce much higher values. Standard consistency classifications range from very soft for N-values below 2, through soft, firm, stiff, and very stiff, up to hard clays with N-values exceeding 100. This classification system gives engineers an immediate sense of how cohesive soil will behave under foundation loads.
Estimating Geotechnical Engineering Properties
Beyond simple classification, SPT N-values are used to calculate quantitative geotechnical parameters through well-established empirical correlations. Decades of research and comparative testing have produced reliable formulas that convert blow counts into actionable engineering properties.
For soil strength parameters, SPT data estimates the angle of internal friction for granular soils and undrained shear strength for cohesive soils. The friction angle governs shear resistance in sands and is a critical input for bearing capacity formulas and slope stability analysis. Undrained shear strength controls the short-term stability of foundations in clay deposits.
For soil deformation parameters, SPT results help derive Young modulus, elastic modulus, and stiffness values that predict how much soil will compress under load. Engineers also use SPT data to assess stress history and overconsolidation ratio in clay deposits, which significantly influences long-term settlement behavior. These derived parameters eliminate the need for extensive laboratory testing on every project, reducing both cost and investigation time.
Supporting Foundation Design
Foundation engineering is where SPT data delivers its greatest practical value. In practice, engineers often combine SPT results with laboratory testing and geological interpretation. Every foundation type, from simple spread footings to deep pile foundations, relies on SPT-derived parameters for safe and economical design.
For shallow foundations such as individual footings and raft slabs, SPT data calculates allowable bearing capacity and expected total and differential settlement. Engineers use bearing capacity formulas that incorporate friction angle and cohesion values derived from N-values to determine how much load the soil can safely support. Settlement estimates based on SPT stiffness correlations help ensure buildings remain within acceptable deflection limits over their service life.
For deep foundations including driven piles and drilled shafts, SPT N-values estimate end bearing resistance and skin friction along the pile shaft. Pile capacity calculation methods such as the Meyerhof and Nordlund approaches explicitly use SPT blow counts to predict pile performance in sand and clay. SPT data also helps select appropriate pile lengths and installation methods, ensuring foundations reach competent bearing strata. This direct link between SPT results and foundation sizing makes the test indispensable for geotechnical design.
Evaluating Soil Liquefaction Potential
In seismically active regions, the most critical function of SPT is assessing soil liquefaction potential. Liquefaction occurs when saturated granular soil loses strength during earthquake shaking, transforming from a solid to a liquid-like state. This phenomenon causes catastrophic foundation failure and structural damage.
SPT-based liquefaction analysis follows a standardized procedure. First, raw N-values are corrected to account for overburden pressure and hammer efficiency, producing a normalized value designated as N1 60. Engineers then calculate the cyclic stress ratio induced by the design earthquake and compare it to the cyclic resistance ratio of the soil, which is directly correlated to the corrected N-value. If the induced stress exceeds the soil resistance, liquefaction is considered likely, and mitigation measures such as soil compaction or deep foundations are required.
This SPT-based method is the most widely accepted liquefaction assessment technique in engineering practice. Its reliability has been validated through decades of post-earthquake field observations, making it a mandatory component of geotechnical investigations in earthquake-prone regions.
Standardized procedure is what makes SPT results consistent and comparable across different sites and regions. The test follows five distinct steps, conducted at specified depth intervals during borehole advancement.
Step 1: Drilling the Borehole
The process begins by drilling a borehole to the depth where testing will start. Drilling continues in incremental stages, typically every 5 feet or 1.5 meters, with SPT performed at each interval before drilling proceeds deeper. The borehole must remain stable during testing, with no significant caving or soil loosening that could affect results. In cohesionless soils below the water table, drilling mud or casing may be used to maintain hole integrity.
Step 2: Installing the Split Spoon Sampler
Once the borehole reaches the test depth, the drill bit is removed and a split spoon sampler is attached to the end of the drill rods. The sampler consists of a hollow steel tube split longitudinally into two halves, with a cutting shoe at the bottom and a drive head at the top. This design allows the sampler to be opened after testing to inspect and retrieve the soil sample inside. The sampler is lowered to the bottom of the borehole, ensuring it rests firmly on undisturbed soil.
Step 3: Hammer Driving Process
A standardized hammer system is used to drive the sampler into the soil. The standard hammer weighs 63.5 kilograms and falls freely from a height of 760 millimeters onto the anvil assembly connected to the drill rods. This fixed weight and drop height ensure consistent impact energy per blow. Different hammer types are used in practice, including donut hammers, safety hammers, and automatic hydraulic hammers, each with slightly different energy transfer efficiency that requires later correction.
Step 4: Recording Blow Counts
The sampler is driven a total of 18 inches into the soil, with blow counts recorded separately for three successive 6-inch intervals. The first 6 inches is considered the seating drive and is not used for the official N-value, as the soil at the bottom of the borehole may be slightly disturbed by drilling. The number of blows required to penetrate the second and third 6-inch increments are added together to produce the SPT N-value. If the sampler refuses to advance 6 inches after 100 blows, the test is terminated and refusal is recorded.
Step 5: Soil Sample Collection and Description
After completing the penetration measurement, the sampler is retrieved from the borehole and opened to extract the soil core. Field engineers log the sample color, texture, moisture content, and general classification. Representative portions of the sample may be sealed and transported to a laboratory for further testing, including grain size analysis, Atterberg limits, moisture content, and shear strength testing. The combination of field N-value data and laboratory analysis creates a comprehensive picture of subsurface conditions.
Despite advances in testing technology, SPT remains the dominant investigation method globally. Four key advantages explain its enduring popularity in the geotechnical profession.
Simple and Cost Effective
SPT requires minimal specialized equipment. The test uses standard drilling rigs and basic sampling tools that most geotechnical contractors already own. No sophisticated sensors, data acquisition systems, or trained specialists are needed to perform the test. This simplicity translates directly to lower project costs. SPT typically costs a fraction of more advanced methods such as cone penetration testing or seismic surveys, making it accessible for projects of all sizes.
Provides Soil Samples
Unlike many other in-situ tests that only generate numerical data, SPT recovers actual soil samples during every test. This is arguably its greatest advantage. Engineers can visually inspect the soil, confirm stratigraphy, and select samples for laboratory testing. Physical samples also provide qualitative information about structure, fabric, inclusions, and moisture conditions that numbers alone cannot capture. This dual output of quantitative blow count data and qualitative sample description makes SPT uniquely informative.
Large Historical Database
After nearly a century of worldwide use, SPT has generated an enormous body of empirical data and established correlations. Engineers have spent decades relating SPT N-values to every important soil property and foundation performance parameter. These correlations are embedded in building codes, design manuals, and standard engineering practice worldwide. Newer testing methods may offer higher resolution, but they lack the extensive historical database and proven track record that give engineers confidence in SPT results.
Applicable to Different Soil Types
Few testing methods work well across the full spectrum of soil types. SPT performs reliably in sands, silts, clays, and even gravelly soils. It can be conducted above and below the water table, through fill materials, and into weathered rock. This versatility means a single drilling program can characterize an entire site using one consistent testing method. For projects with variable subsurface conditions, SPT provides uniform data that allows direct comparison between different soil layers and locations.
While SPT is invaluable, raw N-values are not absolute measurements of soil properties. Several factors influence test results independently of actual soil conditions, and engineers must apply corrections before using the data for design.
Hammer Energy Efficiency Correction
Not all hammer systems deliver the same energy to the drill rods. Automatic hammers transfer energy more efficiently than manual donut hammers, meaning they produce lower blow counts for the same soil density. The energy ratio correction factor adjusts raw N-values to a standard 60 percent hammer efficiency, ensuring consistency across different equipment. This correction is the single most important adjustment and forms the basis of the N1 60 value used in liquefaction analysis.
Borehole Diameter Correction
Wider boreholes provide less lateral confinement around the sampler, allowing soil to expand sideways during driving rather than resisting penetration. This results in artificially low blow counts. Standard correction factors compensate for boreholes larger than the reference diameter, ensuring N-values reflect true soil resistance rather than hole geometry effects.
Rod Length Correction
Energy is lost as stress waves travel up and down the drill rods. Shorter rod lengths reflect more energy back to the sampler, while longer rods dissipate more energy through friction and damping. The rod length correction adjusts N-values to account for this effect, particularly important for shallow tests where rod length is short. Modern standards often waive this correction for depths beyond a certain threshold where the effect becomes negligible.
Overburden Pressure Correction
Soil at greater depth is confined by the weight of overlying material, which increases penetration resistance independently of inherent density. Two sand deposits with identical relative density will produce different N-values if located at different depths. The overburden correction normalizes N-values to a standard effective overburden pressure, allowing direct comparison of soil density at different depths. This correction is essential for liquefaction analysis and for calculating relative density in granular soils.
SPT N-Value vs Other Geotechnical Tests
SPT is one of many tools in the geotechnical investigation toolkit. Understanding how it compares to other common methods helps engineers select the right test for each project.
| Test | Main Purpose | Key Advantage | Primary Limitation |
| SPT | Soil strength and foundation design | Provides samples, low cost, wide applicability | Discrete data points, requires corrections |
| CPT | Continuous soil profiling | High resolution, continuous data | No soil samples, limited in gravel |
| Laboratory Testing | Accurate soil parameters | Direct measurement of properties | Sample disturbance, limited representativeness |
| Geophysical Testing | Large-scale subsurface mapping | Non-invasive, covers large areas | Indirect measurements, requires calibration |
SPT and CPT are often viewed as competitors, but most experienced engineers use them complementarily. CPT excels at detailed stratigraphic profiling and identifying thin layers that SPT might miss. SPT provides soil samples and design values that are more familiar and widely accepted in practice. For most projects, SPT remains the primary investigation method, with CPT added for supplementary data where higher resolution is needed.
What is the main purpose of the Standard Penetration Test?
The main purpose is to determine soil properties and provide data for foundation design. It measures subsurface resistance to penetration, classifies soil density and consistency, and generates parameters for calculating bearing capacity, settlement, pile capacity, and liquefaction resistance.
What does the SPT N-value indicate?
It indicates soil density, consistency, and relative strength. Higher N-values represent denser or stiffer soil with greater load-bearing capacity. Lower values indicate looser or softer conditions that require careful foundation design or ground improvement. The N-value is the fundamental index used in most geotechnical design correlations.
Why is SPT important in foundation engineering?
Because it provides essential data for bearing capacity, settlement, pile design, and liquefaction assessment. Foundation performance depends entirely on soil properties that cannot be observed directly. SPT delivers the quantitative data engineers need to size foundations correctly, ensuring structural safety while avoiding unnecessary construction costs.
What are the limitations of SPT?
Results can be affected by hammer efficiency, borehole conditions, and soil type, requiring corrections. The test provides data only at discrete depth intervals rather than continuous profiles. It may underestimate strength in sensitive clays that are disturbed by the sampling process. Despite these limitations, standardized correction procedures and careful field practice make SPT sufficiently accurate for the vast majority of engineering applications.
Conclusion:
The Standard Penetration Test endures as the foundation of geotechnical engineering because it solves the fundamental problem of understanding subsurface conditions in a practical, economical, and reliable way. Its core functions of soil profiling, density measurement, parameter estimation, foundation design support, and liquefaction assessment cover nearly everything engineers need to know before breaking ground.
For drilling contractors and geotechnical professionals, maintaining proper drilling equipment performance and following standardized procedures are essential for obtaining reliable SPT data.
