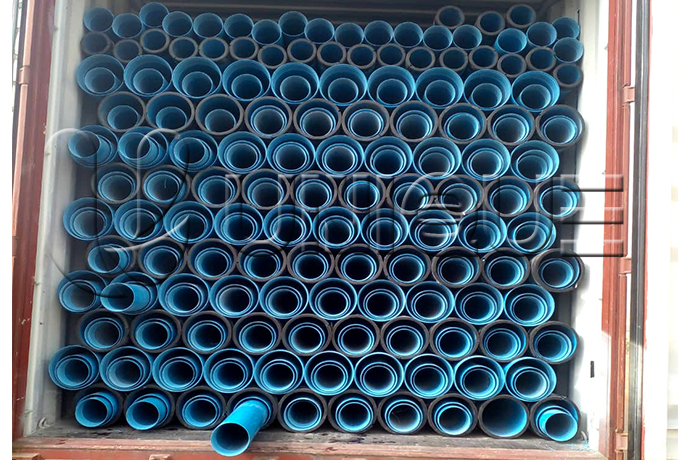

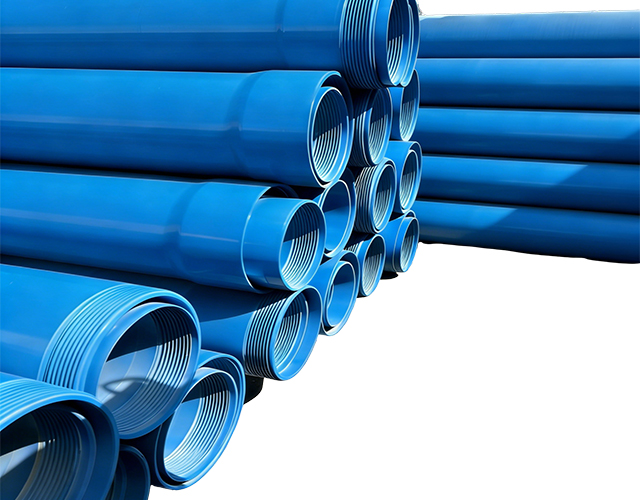

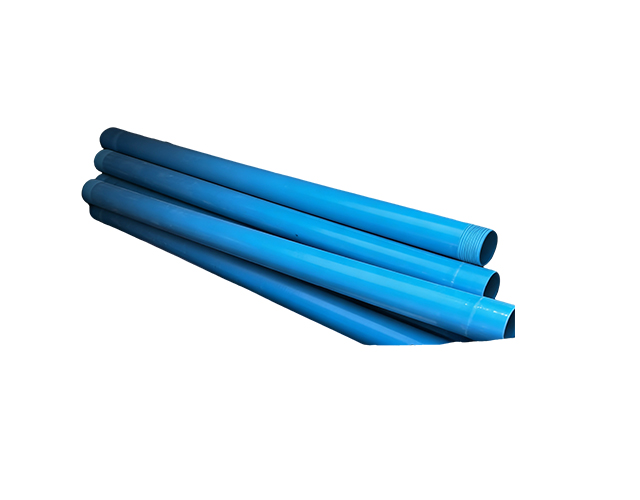

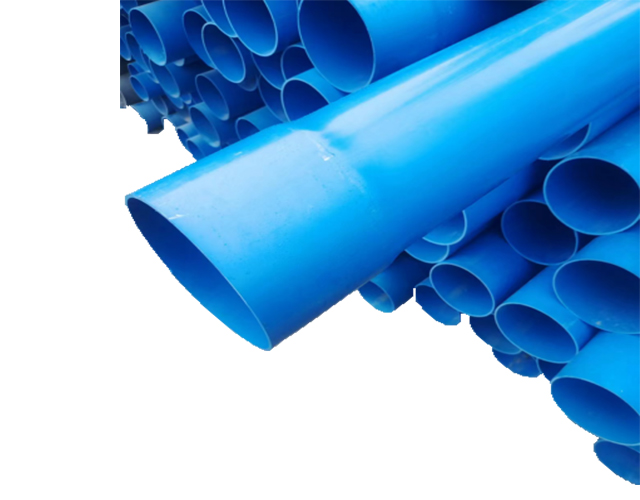

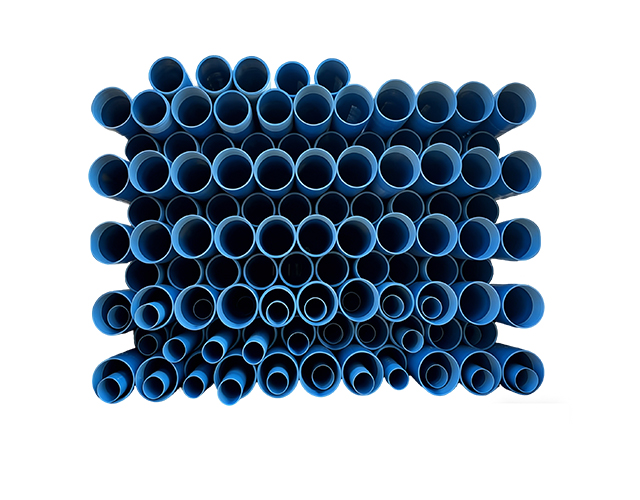

PVC Pipe

As a powerful manufacturer deeply rooted in both water well drilling rigs and pipelines, we leverage over 20 years of production and R&D experience, relying on our proprietary core formulas and fully automated production lines, to create high-performance PVC pipes suitable for various extreme working conditions worldwide. From high-temperature and high-humidity tropical regions and plateau areas with large diurnal temperature variations to complex geological environments rich in minerals, our products consistently perform reliably.
Whether it’s casing protection for water well drilling, the construction of municipal water supply and drainage networks, efficient irrigation systems for agricultural production, or various fluid transportation processes in industrial workshops, our PVC pipes have consistently earned the trust and long-term cooperation of customers in over 30 countries and regions worldwide, thanks to their excellent corrosion resistance, stable structural strength, long service life, and exceptional cost-effectiveness through direct factory supply.

get price quote

Core Advantages of PVC Pipes

Superior Corrosion and Weather Resistance

Made from food-grade, environmentally friendly PVC raw materials and formulated with precision, these pipes completely overcome the problems of rust and scaling common in metal pipes. They can withstand acid and alkali fluids and groundwater corrosion, maintaining structural stability in extreme environments from -20℃ to 60℃, without cracking or deformation, making them suitable for various complex regions such as deserts, coastal areas, and high-altitude regions.

High Efficiency and Energy Saving

The inner wall is treated with a special smooth finish, resulting in a friction coefficient as low as 0.009. Fluid resistance is reduced by 30% compared to traditional pipes, effectively improving water and gas transmission efficiency. The pipes are also lightweight, only 1/5 the weight of steel pipes, reducing transportation costs by 40%. On-site installation does not require heavy equipment; a single person can quickly assemble the pipes, significantly shortening the construction period.

Safe, Environmentally Friendly, and Certified

Manufactured in full compliance with the ISO9001 quality system and certified by international authorities such as SGS and ASTM, these pipes do not release heavy metals and can be directly used for drinking water transportation and agricultural irrigation, fully meeting the environmental standards of Europe, the United States, and Southeast Asia.

Customized Adaptability

Specifically optimized for water well drilling applications, the pipe wall thickness and pressure resistance are enhanced. Customization is available for various diameters from φ20-φ630mm, with pressure ratings covering 0.6MPa-2.0MPa, precisely matching the casing requirements of different depth water wells. Various connection methods, including flared and plain ends, are also available to meet personalized construction requirements.

Parameters of PVC Pipe

No.	Specification(mm) (Dia.x Pressure)	Thickness (mm)	No.	Spec(mm)	Specification(mm) (Dia.x Pressure)
1	50×0.8 Mpa	4.0	32	160×1.0Mpa	6.2
2	50×1.0 Mpa	5.0	33	160×1.25Mpa	8.0
3	50×1.25 Mpa	6.0	34	160×1.6Mpa	10.0
4	50×1.6Mpa	7.5	35	168×1.0Mpa	6.5
5	63×0.8Mpa	4.0	36	180×1.0Mpa	7.5
6	63×1.0Mpa	5.0	37	180×1.25Mpa	9.0
7	63×1.25Mpa	6.0	38	180×1.6Mpa	10.7
8	63×1.6Mpa	7.5	39	185×1.0Mpa	7.5
9	75×0.8Mpa	4.0	40	200×1.0Mpa	7.5
10	75×1.0Mpa	5.0	41	200×1.25Mpa	9.6
11	75×1.25Mpa	6.0	42	200×1.6Mpa	11.9
12	75×1.6Mpa	7.5	43	219×1.0Mpa	7.5
13	90×0.8Mpa	4.2	44	219×1.6Mpa	13.4
14	90×1.0Mpa	5.0	45	225×1.0Mpa	7.5
15	90×1.25Mpa	6.0	46	225×1.25Mpa	10.0
16	90×1.6Mpa	7.5	47	225×1.6Mpa	13.4
17	110×0.8Mpa	4.2	48	250×1.0Mpa	7.5
18	110×1.0Mpa	5.0	49	250×1.25Mpa	9.6
19	110×1.25Mpa	6.0	50	250×1.6Mpa	11.9
20	110×1.6Mpa	8.4	51	250×2.0Mpa	14.8
21	113×1.0Mpa	5.0	52	268×1.0Mpa	10.0
22	114×1.0Mpa	5.0	53	280×0.8Mpa	8.6
23	125×0.8Mpa	4.8	54	280×1.0Mpa	10.7
24	125×1.0Mpa	5.5	55	280×1.25Mpa	12.1
25	125×1.25Mpa	7.0	56	280×1.6Mpa	15.0
26	125×1.6Mpa	8.0	57	315×0.8Mpa	8.0
27	130×1.0Mpa	5.0	58	315×1.0Mpa	10.0
28	140×1.0Mpa	6.0	59	315×1.25Mpa	12.1
29	140×1.25Mpa	7.5	60	315×1.6Mpa	15.0
30	140×1.6Mpa	8.4	61	Composite pipe160	10.0
31	150×1.0Mpa	6.0	62	Composite pipe170	12.0

FAQ of PVC Pipe

How Much Pressure Can Pvc Pipes Withstand?

PVC pipes have different pressure ratings (0.6MPa, 1.0MPa, 1.6MPa, etc.).
For deep well applications, thickened or reinforced PVC-U pipes are generally used, which have stronger pressure resistance.

Will Pvc Pipes Deform? What Is Their Lifespan?

As long as you choose PVC pipes with the appropriate wall thickness, they will generally not deform.
PVC material is corrosion-resistant and rust-proof, with a normal service life of 20-50 years, making it very suitable for long-term use in water wells.

What Are The Connection Methods For Pvc Pipes? Will They Leak?

There are two common connection methods for PVC pipes used in water wells:
Socket and spigot joint with rubber ring – convenient and good sealing
Threaded connection – high strength, suitable for deep wells
As long as the installation is done according to specifications, there will be no leakage.

How Many Pvc Pipes Are Needed For a Well? How To Calculate?

PVC pipes are usually 4 meters or 6 meters long.
Calculation method:
Well depth ÷ pipe length = number of pipes needed (plus 1-2 extra pipes for backup)

Related product recommendations

DC Welding Machine

During field water well drilling operations, equipment failure often becomes a major bottleneck affecting project progress. To ensure drilling teams can work continuously and efficiently, the compact multi-purpose DC welding machine, specifically designed for drilling sites, has become a key piece of equipment guaranteeing smooth on-site operations thanks to its robust versatility and high performance.

Send Email

Chat Now

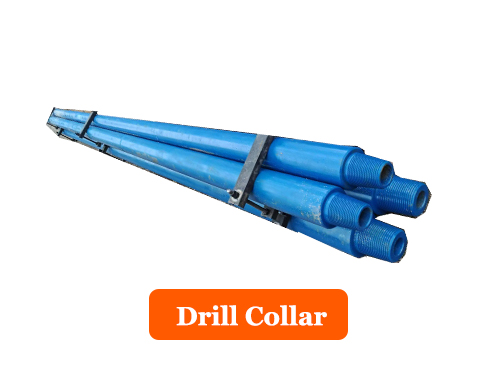

Drill Collar

The drill collar is a critical, indispensable component for water well rigs. Installed directly above the drill bit, it’s crafted from thick-walled seamless steel pipe. Its core functions: provide stable weight on bit (WOB) via its mass to boost drilling efficiency, and maintain drill string stability during operations. The drill collar’s rational design and performance directly determine drilling efficiency and borehole quality.

Send Email

Chat Now

Drill Rod

In the world of water well drilling, the drill rod is far more than just a piece of steel tube. It serves as the critical backbone and vital link between surface drilling rig and the bottom-hole assembly, performing several indispensable functions that make modern deep-well drilling possible.

Drill Rod Length

1.5m/3m/6m

Drill Rod Diameter

76mm/89mm/102mm/114mm

Send Email

Chat Now

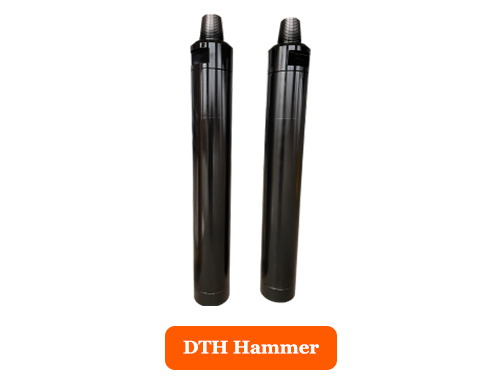

DTH Hammer

In air drilling, DTH Hammer is one of the core tools, greatly improving drilling efficiency in hard rock formations. Its core function is to transmit its high-frequency, high-energy impact energy to the drill bit, which then acts on the rock at the bottom of the well, achieving a composite rock-breaking method that primarily uses impact crushing, supplemented by rotary shearing.

Real Inch

2.8-13

Send Email

Chat Now

Eccentric Drill Bit

In water well drilling, drill bit performance directly determines construction efficiency and cost. Eccentric drill bits, with their unique structural design, have become a preferred core component for water well drilling rigs, providing stable support for drilling in complex geological formations and serving as a key tool for improving drilling efficiency.

Send Email

Chat Now

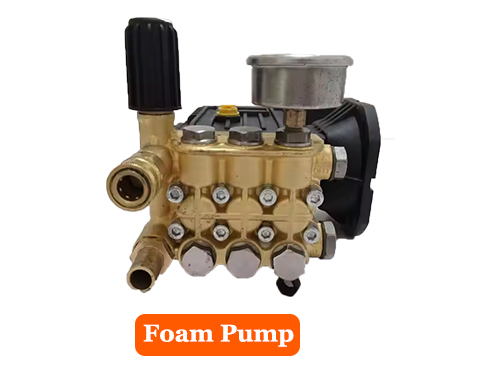

Foam Pump

A foam pump is a device specifically designed for water well drilling, primarily used to mix foaming agents with water or other liquids in proportion and transport the mixture to the drilling zone via pipelines. Its core function is to generate uniform, stable bubbles that improve fluid performance, optimize mud carrying capacity and borehole cleaning efficiency, thereby enhancing overall drilling efficiency. It is particularly suitable for smooth cuttings removal and effective prevention of downhole gas leakage.

Send Email

Chat Now

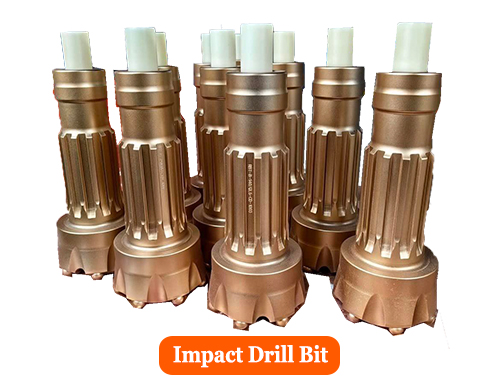

Impact Drill Bit

Impact drill bit uses reciprocating impact force to break hard rock/brittle strata. Compatible with percussion drilling rigs, DTH hammers & pneumatic hammers—ideal for water well drilling, mining, foundation engineering. Durable, efficient, trusted globally.

Send Email

Chat Now

Mud Pump

Mud Pump is a core component for water well drilling rigs, designed to deliver stable pressure/flow for cutting carrying, cooling, and borehole protection. Suitable for shallow/deep wells and various geological conditions, it features strong adaptability, reliable performance, and easy maintenance.

Send Email

Chat Now

PDC Drill Bit

PDC Drill Bits (Polycrystalline Diamond Compact Drill Bits) are engineered for efficient drilling, suitable for water wells, mining, oil & gas and other scenarios. Crafted with premium PDC cutters and high-strength matrix, they offer exceptional wear resistance and impact resistance, delivering outstanding performance. With 30%+ faster drilling speed and longer service life, they are the ideal choice for cost-effective and efficient drilling.

Send Email

Chat Now

Tricone Drill Bit

Tricone drill bits are one of the oldest and most widely used types of drill bits in drilling engineering, originally used for drilling water oil and gas. They are known for their powerful rock-breaking ability and wide adaptability to various formations. Their core function is to use a combination of crushing, impacting, and scraping to break downhole rock, thereby drilling a wellbore to the target depth.

Diameter

89-550mm

Send Email

Chat Now

Stabilizer

In the process of water well drilling, the stability of the drilling tool and the precision of its trajectory are core elements for ensuring the smooth progress of the project. The stabilizer, as a key component in the drill string system, plays an irreplaceable role in stabilizing the drill string, controlling the borehole trajectory, and conditioning the wellbore.

Send Email

Chat Now

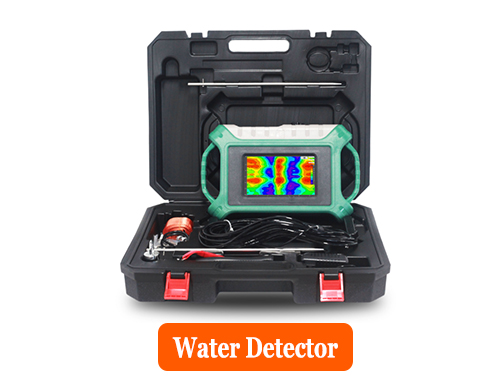

Water Detector
