For contractors, exploration companies, and drilling crews engaged in deep-hole operations, purchasing a 2,000-meter class wireline core drilling rig is a critical investment. The true test lies in the equipment’s ability to perform core drilling consistently and reliably at depths of 1,500 or even 2,000 meters—without exhausting the crew through arduous drill rod handling or causing project shutdowns lasting weeks due to equipment failure. If you are in the market for a 2,000-meter class wireline core drilling rig for mineral exploration, geological surveys, or water well drilling projects, this guide offers a practical reference.
A 2,000-meter wireline core drilling rig is a deep-hole drilling machine designed to retrieve intact rock cores from depths of up to 2,000 meters. The core technology of this equipment is the “wireline system,” which allows core samples to be retrieved directly from the bottom of the borehole without the need to pull the entire drill string to the surface.
The rig consists of five core systems working in unison. The drill rods form a rotating drill string that transmits torque and drilling pressure from the surface to the bit; the inner tube assembly acts as a barrel to house and retain the core sample; the drill bit cuts the rock at the bottom of the hole; the hoisting system uses a winch and wireline to raise and lower the inner tube; and the hydraulic power system drives rotation, feed pressure, and the winch, enabling the operator to maintain precise control during deep-hole operations.
This is precisely where the advantage of the wireline coring method lies. When the inner tube is full of core, the operator lowers an overshot assembly down the wireline to lock onto the top of the inner tube and pull it back to the surface, while the drill string remains in the hole. Crew members unload the core, insert an empty inner tube, and lower it back to the bottom to resume drilling. In contrast, traditional coring methods require pulling every drill rod out of the hole and running them back in to retrieve a full core barrel—a process that can take hours in deep-hole operations—whereas the wireline method virtually eliminates this tedious handling.
The samples obtained by this system hold significance far beyond the drilling operation itself. Core samples serve as direct physical evidence for mapping mineral resources, analyzing geological structures, and evaluating the size and grade of ore bodies. For deep exploration, the ability to continuously retrieve core samples without halting the drilling process is key to ensuring the project’s economic viability.
The most significant efficiency advantage of a wireline coring system is immediately apparent on-site: the core can be retrieved without pulling the entire drill string out of the hole. With conventional rigs, a single coring operation at a depth of 1,500 meters requires hoisting the full 1,500-meter drill string—a process that exponentially increases operating time, fuel consumption, and equipment wear. In contrast, a wireline system allows the inner tube to be hoisted directly to the surface, enabling drilling to resume almost immediately.
This efficiency gap widens as the borehole depth increases. The deeper the hole, the more time-consuming conventional tripping operations become, making the advantages of the wireline system even more pronounced. While the difference might be negligible in shallow-hole operations, at depths of 1,000 meters or more, a wireline rig can keep the bit rotating and core continuously, whereas a conventional rig spends the majority of its time handling, connecting, and disconnecting drill rods.
Furthermore, wireline systems make continuous coring a practical reality. Because crews can retrieve cores quickly and frequently, geologists can conduct denser sampling and make rapid decisions regarding drilling direction and depth without long delays. This not only accelerates the analysis of geological samples but also facilitates more flexible and efficient project management.
It is worth noting that actual efficiency depends on a variety of factors beyond what technical specifications alone can guarantee; these include formation hardness and fracturing, borehole depth, operator skill, and the specific configuration of the coring system. A wireline rig can only reach its full potential under favorable geological conditions and with skilled operation. Therefore, selecting the right rig—and the right supplier—is crucial.
This is a common question among buyers looking to operate in multiple markets with a single piece of equipment. A dual-purpose rig capable of handling both core drilling and water well drilling is highly attractive, as it allows a single capital investment to cover both exploration contracts and water resource projects. Of course, this value is only realized if the equipment is genuinely capable of performing both types of work effectively.
However, these two applications differ significantly. Geological core drilling typically involves smaller hole diameters, precise rotational control, and flushing systems designed to transport fine cuttings while preserving the integrity of the core sample. In contrast, water well drilling usually requires larger hole diameters, utilizes different drill bits—such as Down-The-Hole (DTH) hammers or roller cone bits—and employs high-flow air or mud circulation systems to clear heavier cuttings and stabilize large-diameter borehole walls. Drill rods, bits, flushing methods, and daily operational workflows differ between the two processes.
To use the same rig for both core drilling and water well drilling, one must rigorously evaluate factors such as target hole diameter, geological conditions, drilling techniques, and auxiliary equipment. If your projects range from 2,000-meter exploration holes to large-diameter water wells, you must verify that the rig’s spindle, torque, hoisting capacity, and flushing system can accommodate both operational requirements. Once the configuration is confirmed to be suitable, a dual-purpose rig offers exceptional operational flexibility.

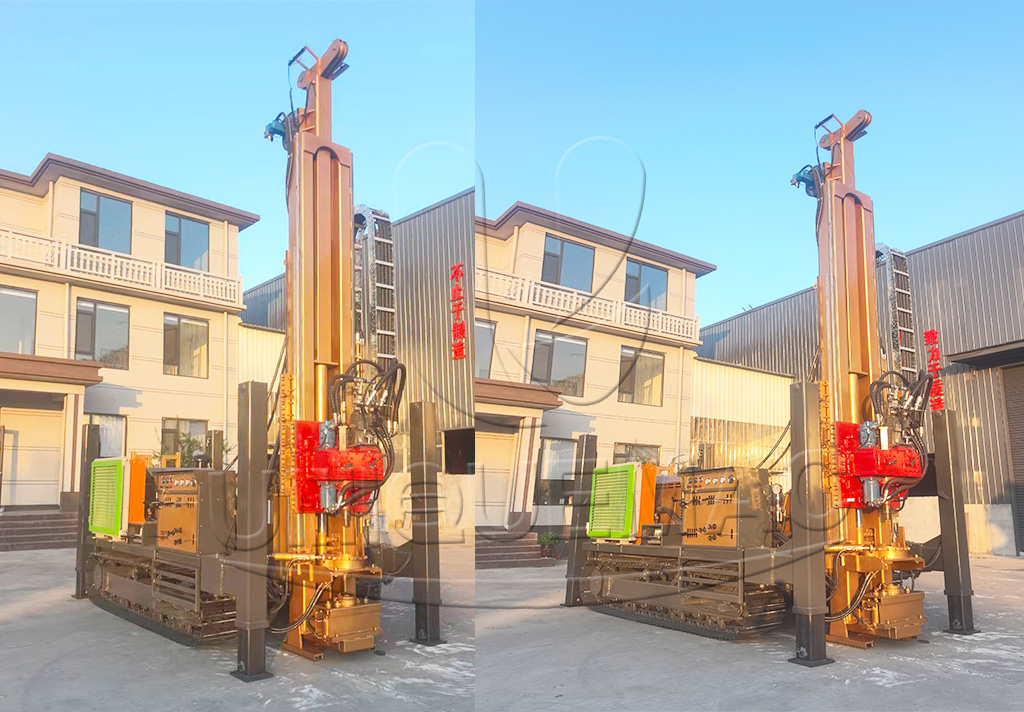

The 2000m drilling rig is built around what a deep hole operation actually needs, which is sustained, controllable output at depth rather than a headline number. Its power output is sized to maintain rotation and feed under heavy load over long shifts, because in deep drilling it is continuous operation, not peak output, that pays the bills. The hydraulic control system gives the driller responsive, precise control of feed pressure and rotation speed, which protects both the core and the tooling when conditions change unexpectedly underground.

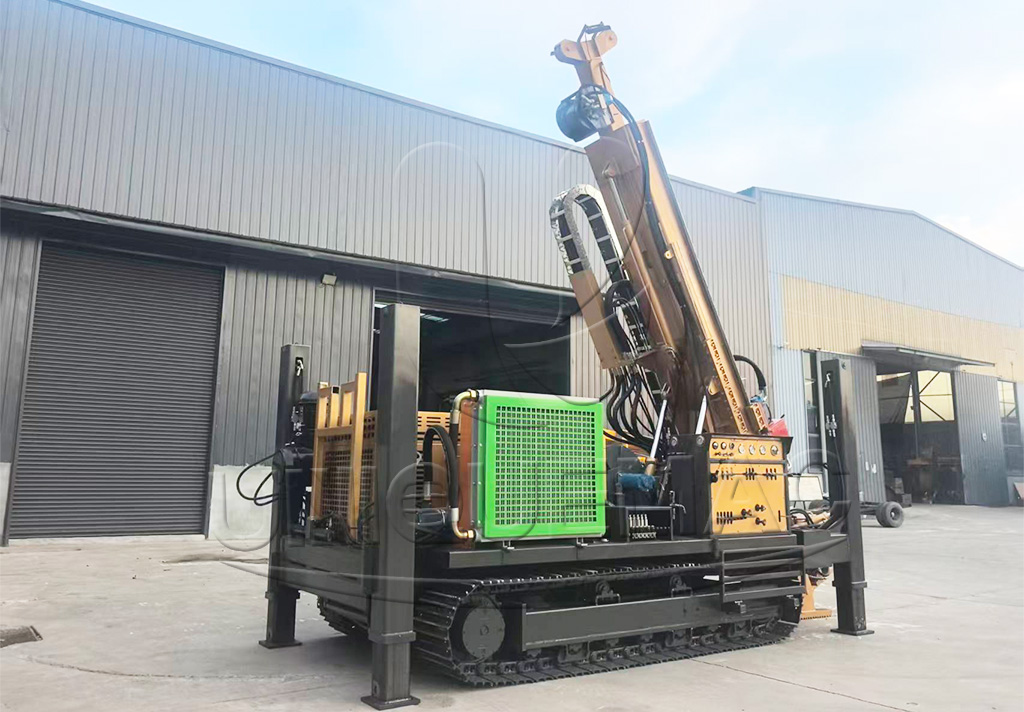

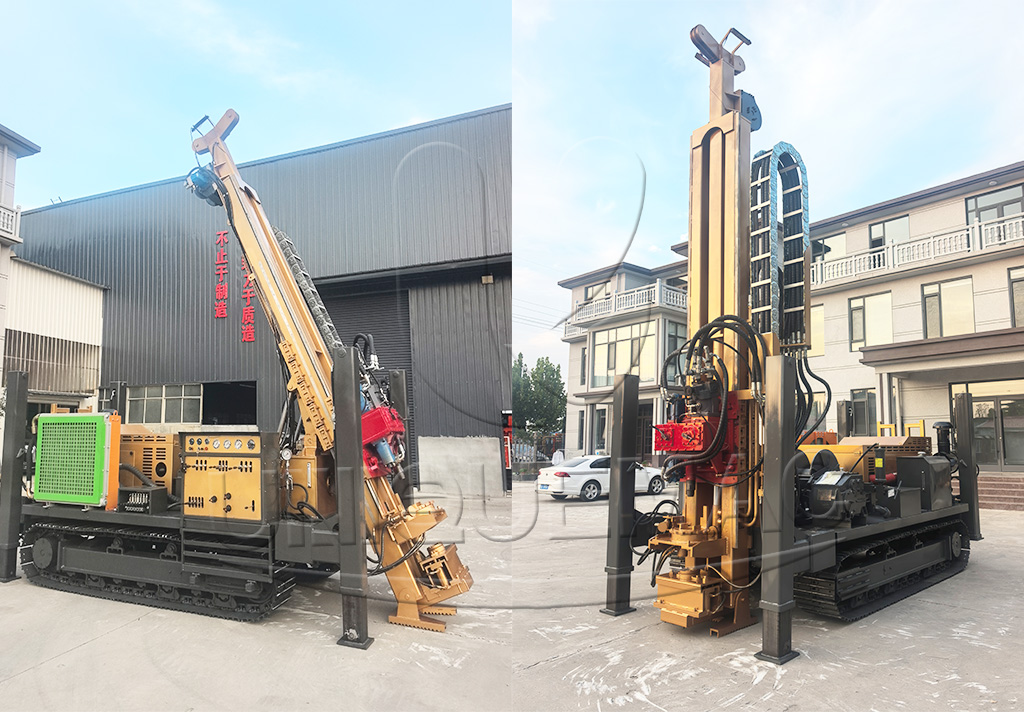

The power head drives the drill string directly and efficiently, delivering consistent torque to the bit through variable speed control. The hoisting system is engineered for the heavy lifting that deep holes demand, handling the rod string and the wireline operations smoothly and safely. The crawler-mounted undercarriage moves the rig between drill sites without a separate transport unit, so the machine can be repositioned quickly when projects shift.
These features exist to serve a deep drilling operation, not to chase numbers. The value of the 2000m drilling rig is that each system is configured to keep producing at 2000 meters, with the stability and control that protect the crew and the tooling.
The 2,000-meter core drilling rig is suitable for a wide range of projects; understanding these applications helps determine whether the equipment aligns with your operational needs.
Mineral exploration and ore body investigation are its primary application areas. Capable of retrieving deep-seated core samples, the rig provides the essential data needed to delineate mineral resources, assess ore body conditions, and inform development decisions.
The equipment also plays a vital role in geological surveys and deep-core sampling, facilitating tasks such as structural mapping, stratigraphic research, and regional geological investigations.
Depending on specific project requirements, the rig can also be utilized for geotechnical engineering investigations. Such operations typically demand high core recovery rates and precision drilling—capabilities fully possessed by wireline core drilling rigs—provided that the borehole depth and diameter comply with on-site technical specifications.
With the appropriate configuration, the rig can also be used for water resource exploration and water well drilling. As previously mentioned, operations involving large-diameter water wells require the use of suitable drill bits, drill rods, and flushing systems.
The 2,000-meter core drilling rig is suitable for a wide range of projects; understanding these applications helps determine whether the equipment aligns with your operational needs.
Mineral exploration and ore body investigation are its primary application areas. Capable of retrieving deep-seated core samples, the rig provides the essential data needed to delineate mineral resources, assess ore body conditions, and inform development decisions.
The equipment also plays a vital role in geological surveys and deep-core sampling, facilitating tasks such as structural mapping, stratigraphic research, and regional geological investigations.
Depending on specific project requirements, the rig can also be utilized for geotechnical engineering investigations. Such operations typically demand high core recovery rates and precision drilling—capabilities fully met by wireline coring rigs—provided that the borehole depth and diameter comply with on-site technical specifications.
With the appropriate configuration, the rig is also suitable for water resource exploration and water well drilling. As previously mentioned, operations involving large-diameter water wells require the use of compatible drill bits, drill rods, and flushing systems.
To select a drilling rig that delivers an optimal return on investment, it is crucial to verify the following aspects before making a purchase.
First, determine the required drilling depth and core size. These two parameters dictate the overall equipment configuration requirements, covering everything from the drill rod series to hoisting capacity.
Second, assess the hardness, degree of fragmentation, and borehole wall stability of the geological formations. Hard, fractured, or unstable formations impose specific requirements regarding the rig’s torque, flushing system, and drill rod specifications.
Third, evaluate the drilling method, drill rod series, bit compatibility, and flushing system. These configurations must align with the target borehole diameter and formation conditions; otherwise, the rig may struggle to perform effectively in actual operations.
Fourth, verify the engine power, torque, hoisting capacity, and rig stability. These parameters should be matched to the actual drilling depth and operational workload, rather than simply relying on the maximum values listed in the product manual.
Finally, confirm whether the selected configuration supports both core drilling and water well drilling capabilities. If dual functionality is required, ensure this is explicitly stated in the contract; do not rely on assumptions.
If you are ready to move forward, send us the details that define your project. Tell us the target drilling depth, the core diameter you need, the ground conditions you expect, the purpose of the project, and the country where the machine will operate. With that information, we can recommend the right drill rod series, drilling tools and supporting configuration for your site, and give you a quote built around your actual work.
