Most drilling contractors prioritize DTH hammer size drilling depth and borehole diameter for DTH drilling projects yet commonly neglect proper DTH hammer air compressor matching. Mismatched compressor pressure and airflow causes low penetration weak rock breaking poor cuttings removal accelerated bit wear higher fuel costs and unstable drilling performance. Optimal DTH hammer compressor selection never relies on maximum parameters alone. This guide details professional methods to match air compressor pressure and airflow with DTH hammers for reliable efficient drilling under actual site conditions.
The air compressor serves as the core power source of the entire DTH drilling system providing continuous high pressure compressed air to support all underground drilling operations. Its functions can be divided into two irreplaceable core roles that directly determine drilling efficiency and borehole quality.
Powering the DTH Hammer
Compressed air is the sole power medium for DTH hammer operation. The high pressure air output by the compressor drives the internal piston of the DTH hammer to perform rapid reciprocating impact motion. This continuous mechanical impact generates powerful kinetic energy that acts on the drill bit enabling the bit to crush crack and break various rock formations. Stable and adequate air pressure ensures consistent hammer impact frequency and impact force which is the fundamental guarantee for efficient rock breaking and smooth drilling advancement.
Removing Rock Cuttings
In addition to providing power for the hammer compressed air undertakes the key task of borehole cleaning. During drilling operations a large amount of rock chips rock dust residual water and drilling debris accumulate at the bottom of the borehole. Sufficient compressor airflow carries these cuttings from the bottom of the hole through the annular gap between the drill pipe and borehole wall all the way to the ground surface. Effective cuttings removal prevents debris accumulation at the hole bottom avoids repeated crushing of rock materials and maintains a clean and safe drilling environment.
A qualified air compressor for DTH drilling must deliver both adequate stable pressure and sufficient continuous airflow. Lack of either parameter will cause the entire drilling system to fail to operate at standard efficiency.
Most novice users confuse air pressure and air flow when selecting a DTH hammer compressor resulting in incorrect equipment matching. These two core parameters operate independently and affect different links of DTH drilling. Understanding their differences and synergistic relationship is the basis of accurate compressor selection.
What Is Air Pressure
Air pressure refers to the compression intensity of output air measured in bar MPa and psi in the drilling industry. It reflects the impact strength of compressed air and directly controls the impact energy of the DTH hammer. Higher stable air pressure enables the hammer to produce stronger impact force which is crucial for breaking hard rock formations such as granite basalt and quartzite. Sufficient working pressure ensures that the drill bit can effectively crush rock structures instead of bouncing off the rock surface. Insufficient air pressure directly leads to weak hammer impact incomplete rock breaking and significantly reduced drilling speed.
What Is Air Flow
Airflow also known as air volume refers to the total amount of compressed air output by the compressor per unit time with common measurement units of cubic meters per minute and CFM. Airflow mainly corresponds to the air consumption of the DTH hammer and the cuttings removal capacity of the borehole. Sufficient airflow supports the continuous cyclic operation of the hammer piston maintaining stable working frequency. Meanwhile it provides enough air volume to form effective circulating wind pressure in the borehole ensuring that all rock debris can be smoothly discharged to the ground. Insufficient airflow causes slow cuttings accumulation poor hole cleaning and even piston stalling affecting continuous drilling operations.
Why Do You Need Both
High pressure without enough airflow cannot support long term stable drilling. Even if the pressure meets the hammer requirements insufficient air volume will fail to sustain continuous piston movement and effective cuttings removal resulting in intermittent hammer operation and residual debris in the borehole. Similarly high airflow without sufficient pressure is also useless for DTH drilling. Excessive air volume with low pressure cannot generate enough impact energy to break hard rock leading to slow penetration and low drilling efficiency. Qualified DTH hammer compressor matching requires accurate coordination of correct pressure and correct airflow to adapt to actual drilling working conditions.

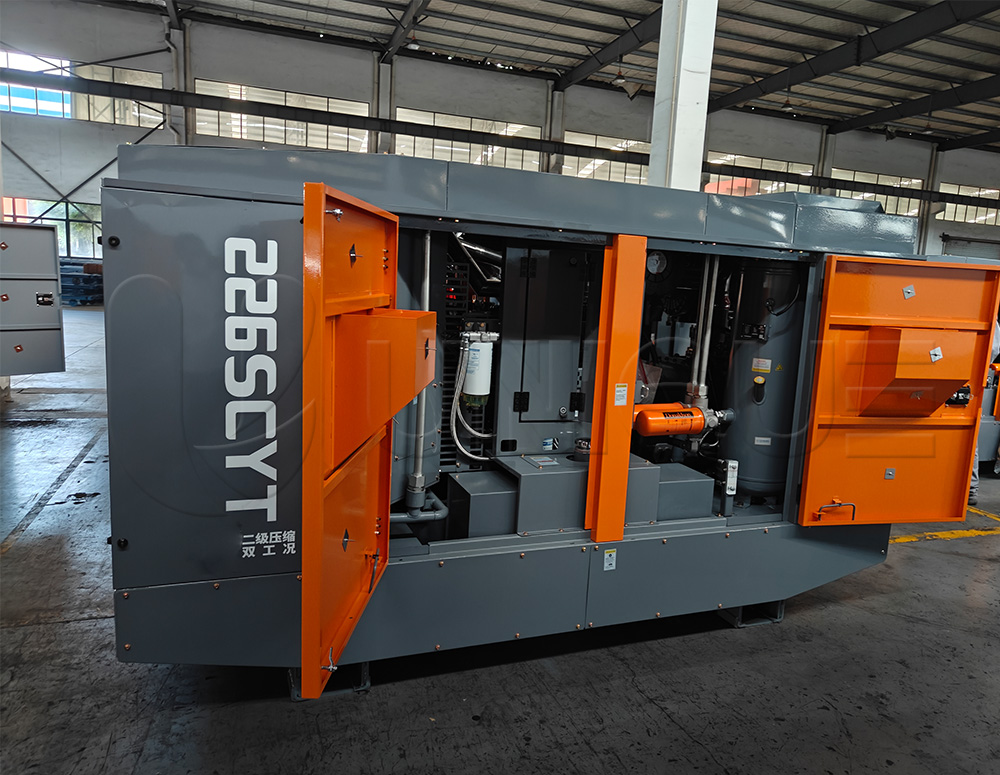

Air pressure matching is the primary link of DTH hammer compressor selection directly determining whether the hammer can produce qualified rock breaking impact force. The matching process needs to follow standardized steps and fully consider on site pressure loss rather than simply relying on hammer rated parameters.
Step 1: Check the Hammer’s Working Pressure
First confirm the rated working pressure of the selected DTH hammer from the product specification. Most conventional DTH hammers have a standard working pressure range of 1.2 to 2.5 MPa equivalent to 12 to 25 bar. Hard rock special hammers need higher working pressure up to 2.8 to 3.2 MPa. This rated pressure is the minimum pressure required for normal hammer operation and cannot be used as the final compressor selection standard.
Step 2: Consider Pressure Loss
The most common mistake in compressor pressure selection is equating hammer required pressure with compressor output pressure. Actual DTH drilling systems produce unavoidable pressure loss in the working process. Pressure loss comes from multiple links including drill pipe transmission loss hose connection loss valve switching loss and pipeline interface loss. In addition drilling depth altitude and ambient temperature will also affect air pressure transmission efficiency. The deeper the drilling depth the longer the air transmission pipeline and the more serious the pressure attenuation.
For this reason the actual required compressor working pressure must be higher than the hammer rated working pressure. The professional matching formula is compressor working pressure equals hammer required pressure plus system pressure loss. In conventional shallow drilling within 100 meters the system pressure loss is about 2 to 3 bar. For medium depth drilling of 100 to 300 meters the pressure loss increases to 4 to 6 bar. For deep drilling above 500 meters the cumulative pressure loss can reach 8 to 10 bar. Reserving sufficient pressure margin ensures that the hammer can always work within the rated pressure range and maintain stable impact performance.
How to Match Air Flow with a DTH Hammer
Airflow matching determines the continuous working stability of the DTH hammer and the borehole cleaning effect. Reasonable airflow configuration needs to comprehensively consider hammer air consumption and actual drilling environmental conditions to avoid insufficient air volume or redundant waste.
Step 1: Check Hammer Air Consumption
Each DTH hammer model has fixed rated air consumption parameters which refer to the standard air volume required for continuous operation under rated working pressure. For example a 6 inch DTH hammer has a typical air consumption of 22 to 28 cubic meters per minute. This parameter is the basic reference for compressor airflow selection ensuring that the compressor can provide continuous power for hammer piston operation.
Step 2: Consider Actual Drilling Conditions
On site drilling conditions will change the actual airflow demand of the system. Borehole diameter directly affects the annular gap for cuttings discharge larger hole diameters require more airflow to maintain effective debris discharge speed. Drilling depth increases air circulation resistance and air leakage loss requiring increased air volume compensation. Drill pipe diameter rock formation hardness and real time cuttings volume will also change airflow demand. Hard rock drilling produces more fine debris which requires higher airflow to completely clean the borehole. Fractured formations are prone to air leakage resulting in increased invalid air consumption.
Step 3: Select a Compressor with Sufficient Airflow
The core principle of airflow matching is not to select a compressor only by its maximum airflow specification. Many users blindly choose high airflow compressors ignoring that the maximum air volume of the compressor can only be output under no load or low pressure conditions. The key selection index is the actual stable airflow output by the compressor under the hammer rated working pressure. Only the airflow data under matching pressure can truly reflect the compressor’s effective supply capacity avoiding the problem of nominal high airflow but insufficient actual working air volume.
DTH hammer size is the most intuitive index for compressor preliminary matching. Different hammer sizes correspond to fixed hole diameter ranges pressure intervals and airflow requirements forming a standardized matching system for engineering reference. Combined with UNIQUEMAC actual product parameters the accurate matching data is as follows.
3 inch to 4 inch small DTH hammers adapt to 90mm to 130mm small holes suitable for shallow foundation drilling and small blasting hole projects. The matching pressure range is 12 to 18 bar and the required airflow is 8 to 12 cubic meters per minute. 5 inch medium DTH hammers apply to 140mm to 165mm medium holes commonly used for conventional water well drilling and mining exploration with a matching pressure of 18 to 24 bar and airflow of 15 to 20 cubic meters per minute. 6 inch to 7 inch large DTH hammers match 180mm to 220mm large holes for deep water well drilling and large scale quarry blasting requiring 20 to 28 bar pressure and 22 to 30 cubic meters per minute airflow. 8 inch to 9 inch super large DTH hammers correspond to 250mm to 300mm ultra large boreholes used for engineering foundation and large diameter well drilling with a high matching pressure of 26 to 32 bar and ultra high airflow of 32 to 40 cubic meters per minute.
Larger DTH hammer sizes mean larger piston structures higher operating air consumption and stricter requirements for compressor pressure and airflow output stability.
Borehole diameter directly determines the annular space between the drill pipe and borehole wall which is the only channel for cuttings discharge and air circulation. Different hole diameters put forward completely different airflow requirements for the compressor.
Taking conventional working conditions as an example a 150mm small diameter borehole has a narrow annular gap. The circulating air flow speed is fast under fixed air volume which can complete cuttings removal with conventional airflow. A 250mm large diameter borehole has a wide annular space if the compressor airflow remains unchanged the air flow speed will decrease sharply resulting in slow debris discharge residual fine dust at the hole bottom and reduced drilling efficiency.
The larger the borehole diameter the higher the airflow required to maintain effective cuttings carrying capacity. In large aperture DTH drilling projects blindly using conventional low airflow compressors will lead to incomplete hole cleaning repeated rock grinding and serious drill bit wear. Therefore compressor airflow must be increased proportionally according to the actual hole diameter to ensure unobstructed air circulation and clean borehole environment.
Geological rock formation is the core factor affecting DTH hammer working performance and compressor matching standards. Different rock hardness and structural characteristics change the pressure and airflow demand of drilling operations.
Soft formations such as soil layer sandstone and weathered rock have low rock hardness and loose structures. The DTH hammer requires low impact energy to break rock so the demand for compressor working pressure is relatively low. Conventional pressure and airflow parameters can meet efficient drilling needs and no excessive parameter margin is required.
Hard rock formations including granite basalt and quartzite have high hardness and dense structures requiring strong continuous impact force for crushing. Drilling in hard rock needs the compressor to provide stable high pressure to ensure hammer impact strength. At the same time hard rock drilling produces more fine rock dust which is difficult to discharge requiring increased compressor airflow to improve hole cleaning efficiency.
Fractured rock and mixed formations have complex structures with easy air leakage and uneven rock hardness. Air circulation loss increases during drilling resulting in insufficient effective air volume for the hammer. For such working conditions it is necessary to properly increase compressor pressure and airflow margin to compensate for air leakage loss and adapt to alternating soft and hard rock drilling environments.
Both undersized and oversized air compressors negatively impact DTH drilling performance, efficiency and operational costs, making precise DTH hammer compressor matching essential. An undersized compressor lacks sufficient pressure and airflow, causing weak DTH hammer impact, slow penetration rates and poor borehole cleaning. Accumulated rock debris leads to repeated grinding, accelerated drill bit wear and unstable hammer operation. Though low in initial cost, it raises per-meter drilling expenses, downtime and long-term maintenance costs.
Meanwhile, oversized compressors bring no extra drilling benefits. They feature higher purchase, transportation and fuel costs and cause severe energy waste during idle operation. Excessive pressure and airflow disrupt normal cuttings discharge, trigger borehole turbulence and even lead to hole wall collapse. The core principle for DTH hammer air compressor selection is not pursuing maximum parameters, but choosing a properly matched unit to balance drilling efficiency, equipment investment and operating consumption.
DTH drilling is a systematic project the air compressor and DTH hammer matching cannot be separated from the overall system configuration. The complete drilling system includes drilling rig air compressor drill pipe DTH hammer drill bit and borehole environment all links are interrelated and restrict each other.
The drilling rig provides overall power and support for the drilling process and its lifting and rotating performance needs to match the hammer drilling speed. The drill pipe length and diameter affect air transmission efficiency and pressure loss which must be adapted to the compressor output parameters. The DTH hammer and drill bit determine rock breaking efficiency and need to match the compressor pressure and airflow output. The borehole depth diameter and formation environment feed back parameter adjustment requirements for the compressor.
A qualified DTH drilling system works as a complete system. Compressor performance should be matched with the hammer drill pipe borehole diameter and drilling depth. One sided pursuit of single parameter optimization will lead to system mismatching and affect overall drilling benefits. Reasonable system matching can maximize equipment efficiency reduce energy consumption and extend the service life of all supporting equipment.
Q1. What air pressure does a DTH hammer need
Conventional DTH hammers require a working pressure of 12 to 25 bar while hard rock deep drilling hammers need 26 to 32 bar. The specific pressure depends on hammer size rock formation and drilling depth with sufficient pressure margin reserved for on site loss.
Q2. How do I choose an air compressor for DTH drilling
Confirm DTH hammer rated pressure and air consumption calculate system pressure and airflow loss according to drilling depth and hole diameter adjust parameters according to rock formation and finally select a compressor with stable pressure and airflow output under working conditions.
Q3. Does a larger DTH hammer require more airflow
Yes larger DTH hammers have higher air consumption and match larger boreholes which require more airflow to support hammer operation and complete efficient cuttings removal.
Q4. Does drilling depth affect compressor pressure
Yes deeper drilling leads to greater pipeline pressure loss requiring the compressor to provide higher output pressure to ensure the hammer works within the rated pressure range.
Q5. What happens if the compressor airflow is too low
Insufficient airflow causes unstable hammer operation poor cuttings removal debris accumulation at the hole bottom accelerated bit wear and reduced drilling penetration efficiency.
Q6. Can one compressor power different DTH hammers
A single compressor can adapt to multiple hammers with similar parameter ranges but cannot match hammers with huge pressure and airflow differences otherwise it will cause insufficient power or energy waste.
Q7. What is more important for DTH drilling pressure or airflow
Both are equally important. Pressure guarantees rock breaking capacity while airflow ensures continuous hammer operation and borehole cleaning. Only accurate matching of both parameters can achieve efficient drilling.
Selecting a DTH compressor is not simply about choosing the highest pressure or largest airflow. The correct compressor must be matched with the DTH hammer drilling depth borehole diameter geological conditions and the complete drilling system. Blind pursuit of high parameters or low cost equipment will lead to reduced drilling efficiency increased operating costs and frequent equipment failures affecting project progress and economic benefits.
Accurate parameter matching systematic working condition analysis and standardized equipment selection are the keys to efficient and stable DTH drilling. UNIQUEMAC focuses on customized DTH drilling system matching services helping global users solve various equipment matching problems. Planning a DTH drilling project Send us your drilling depth hole diameter rock formation and DTH hammer size. UNIQUEMAC can help you select a suitable air compressor and complete drilling system.
